General Information

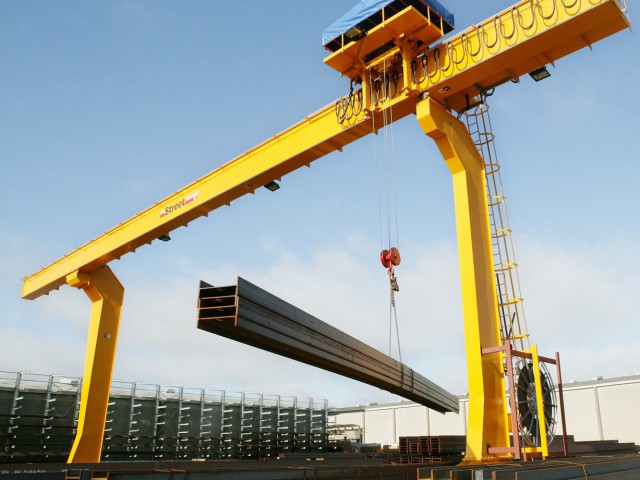

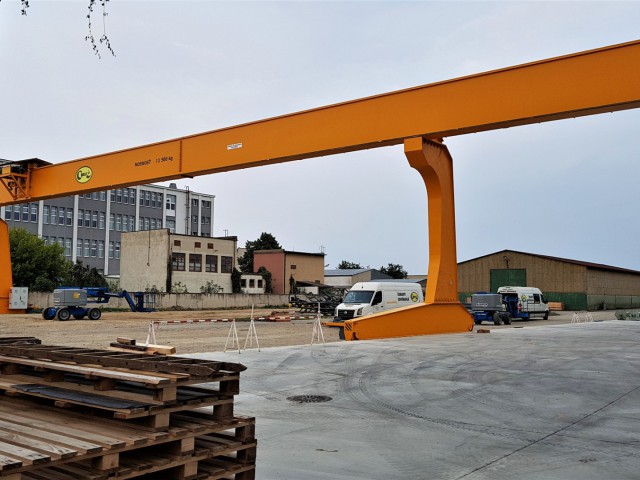

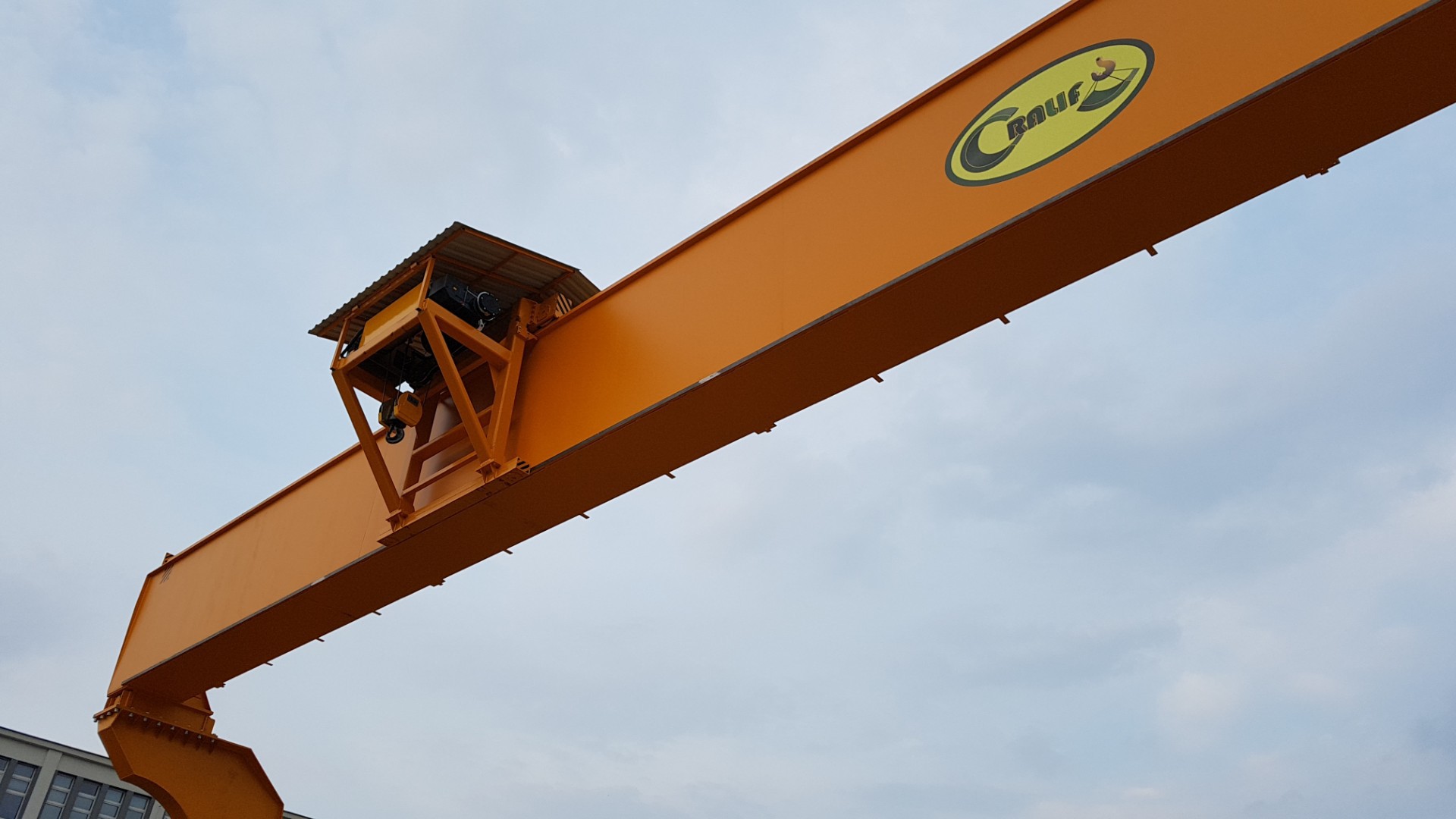

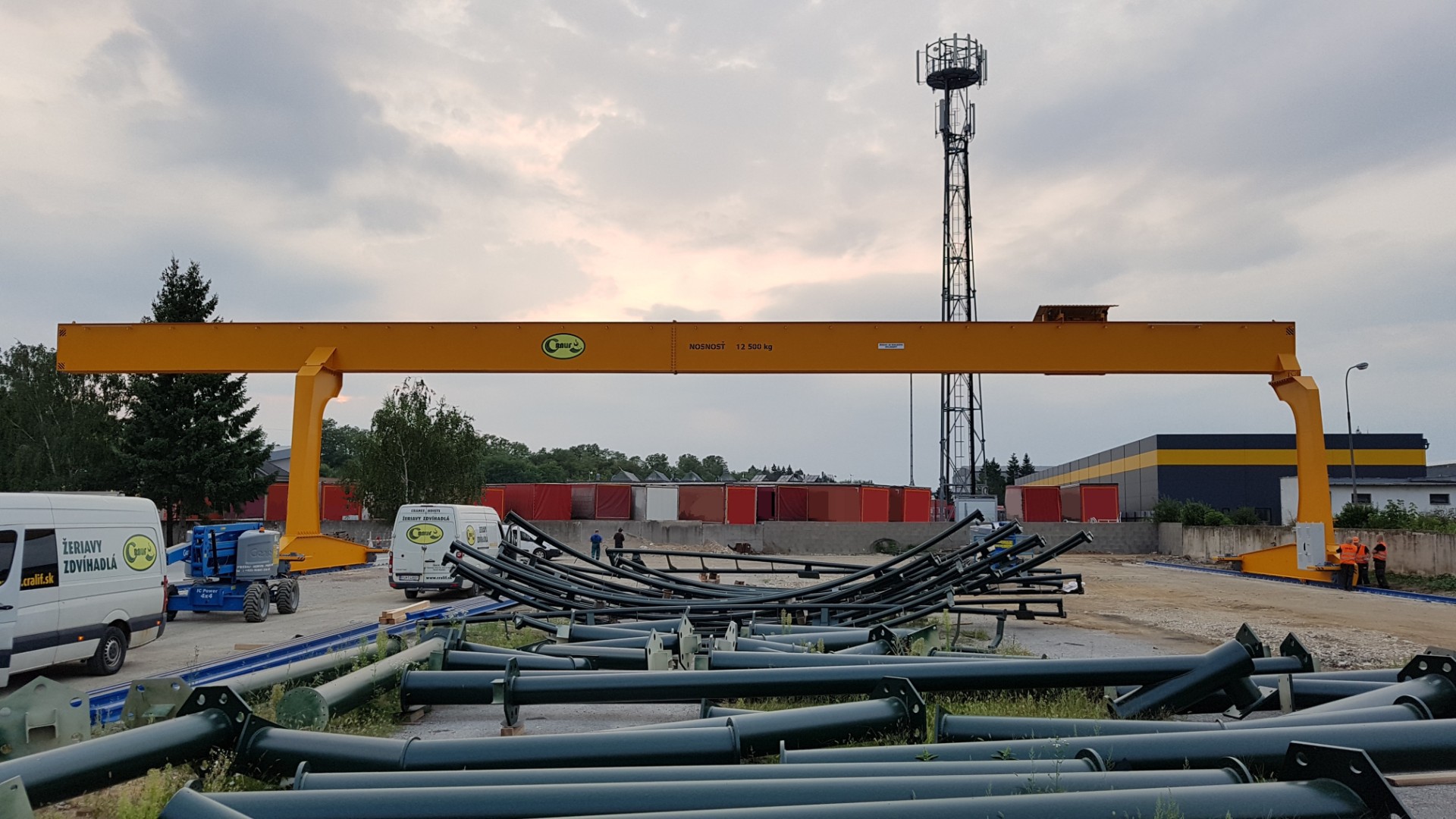

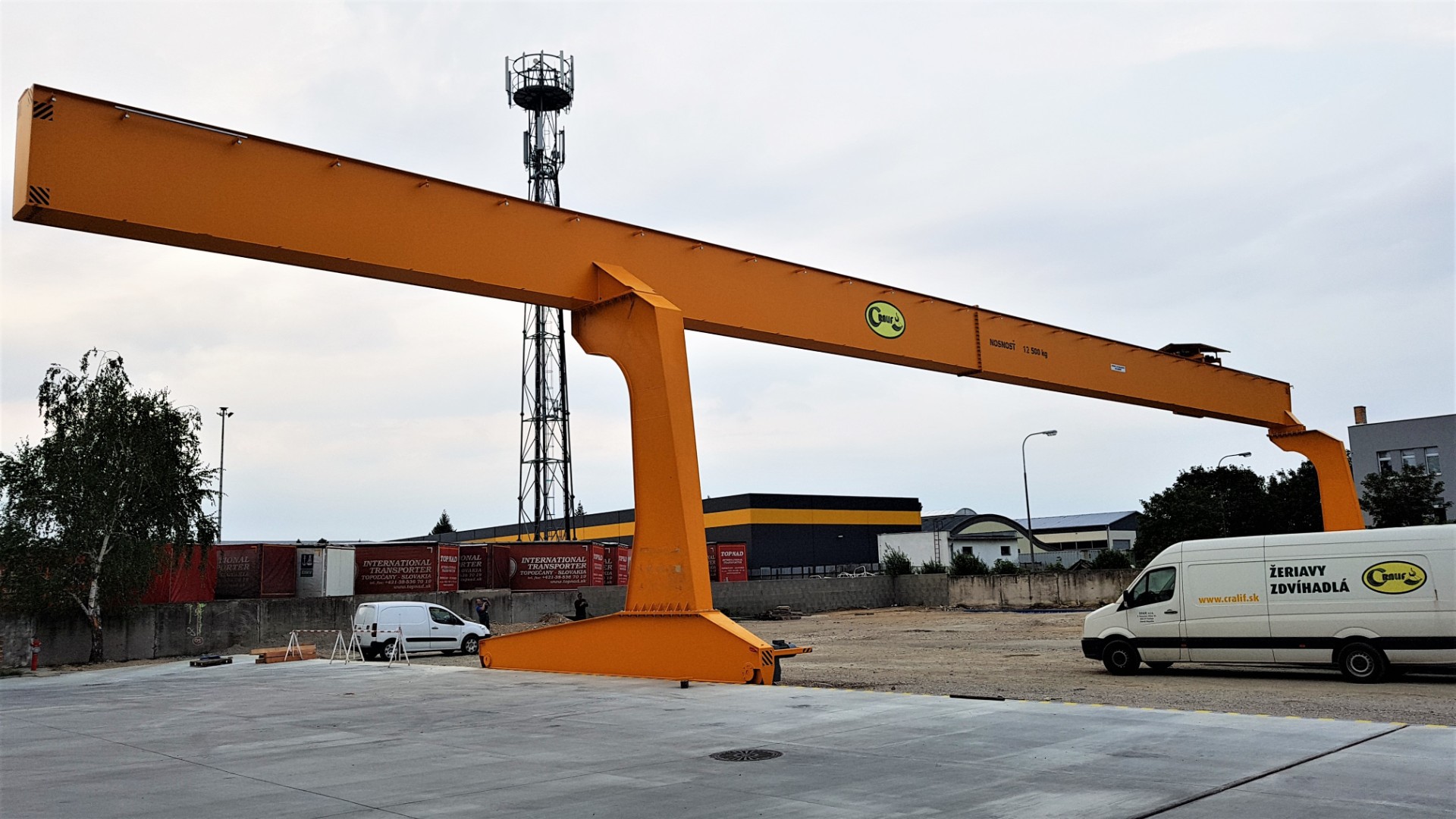

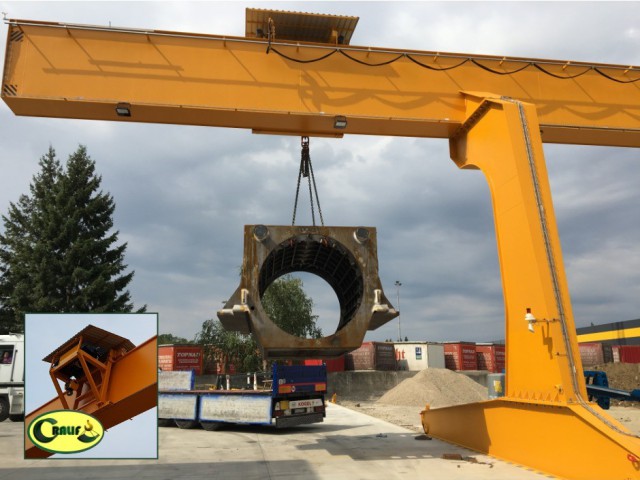

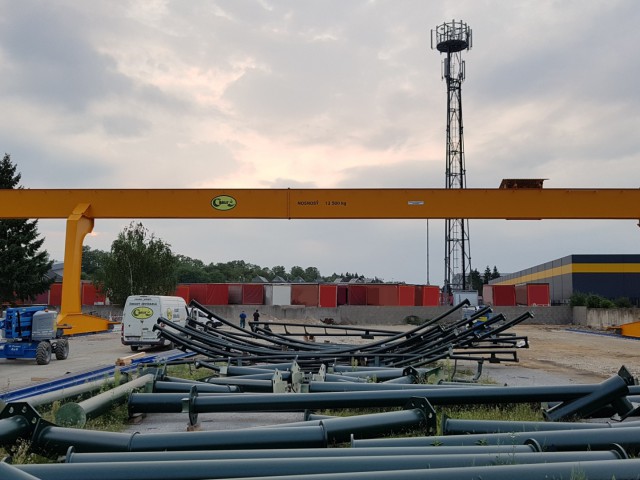

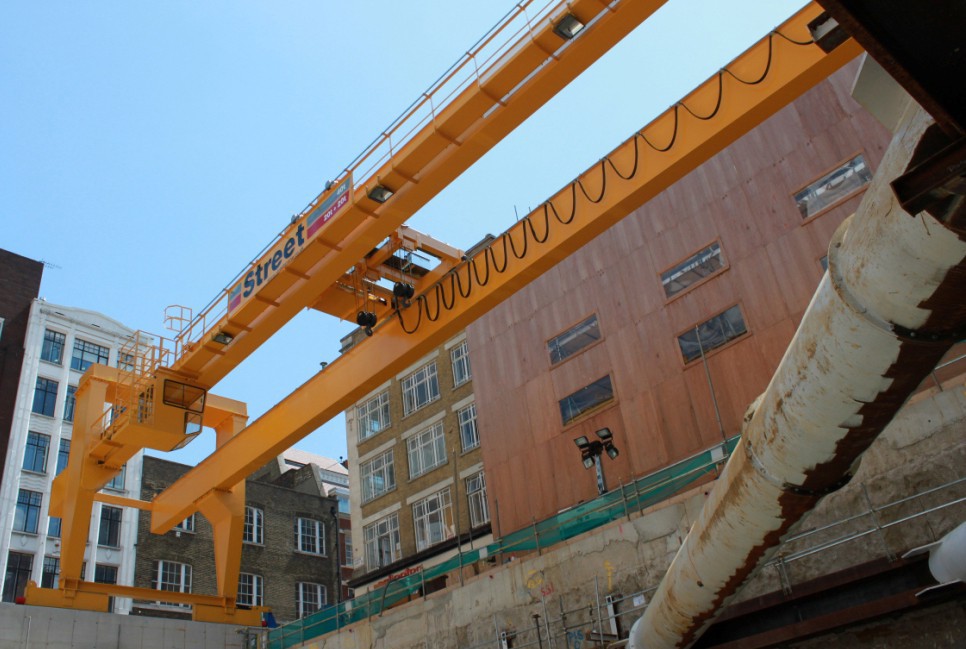

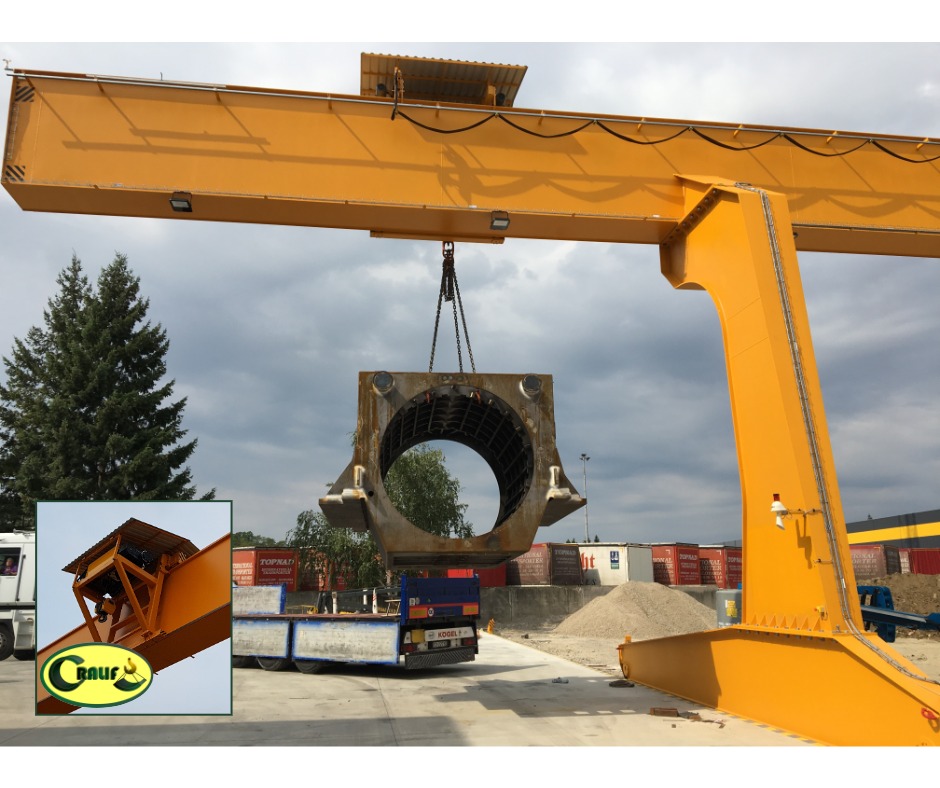

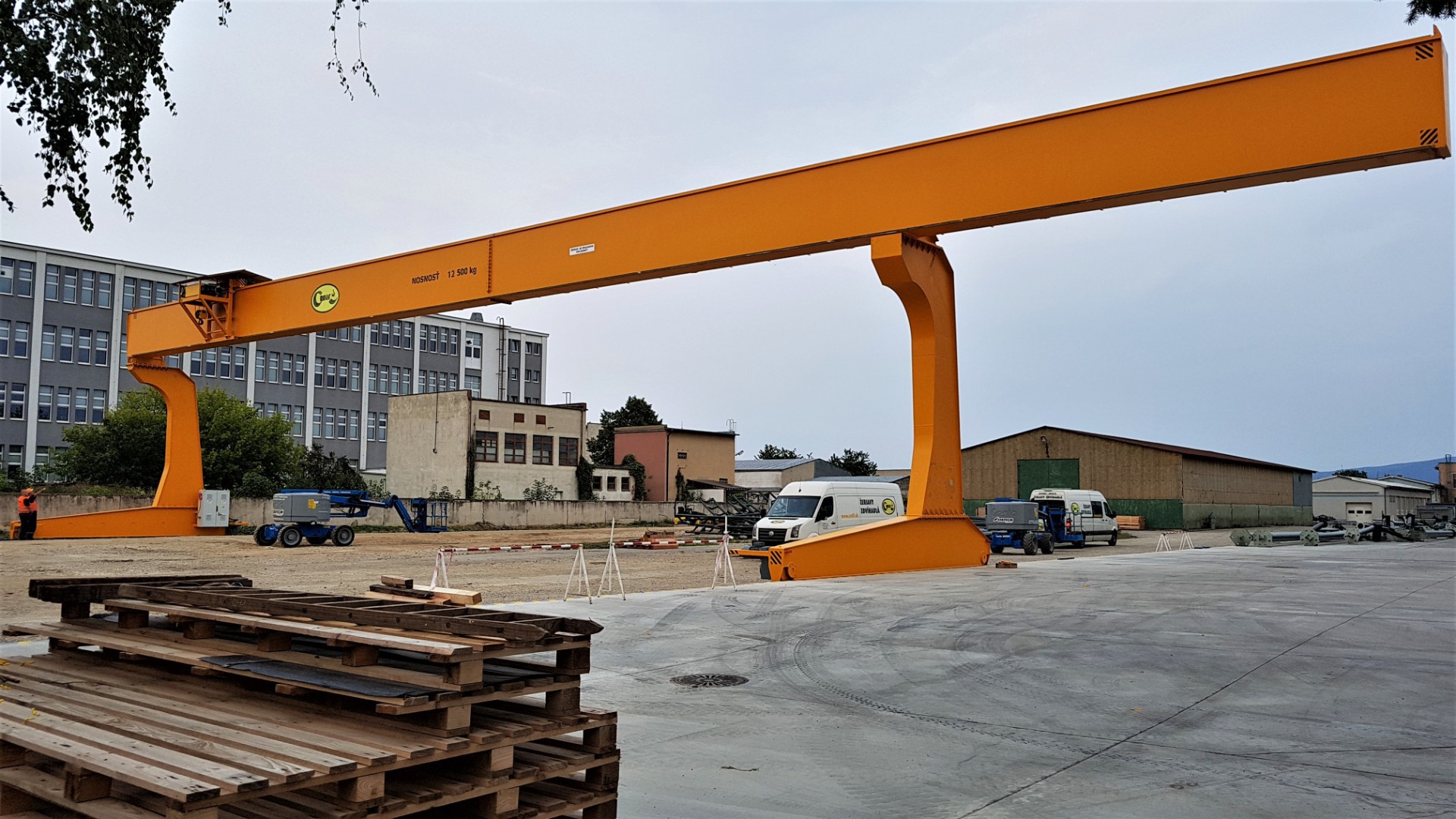

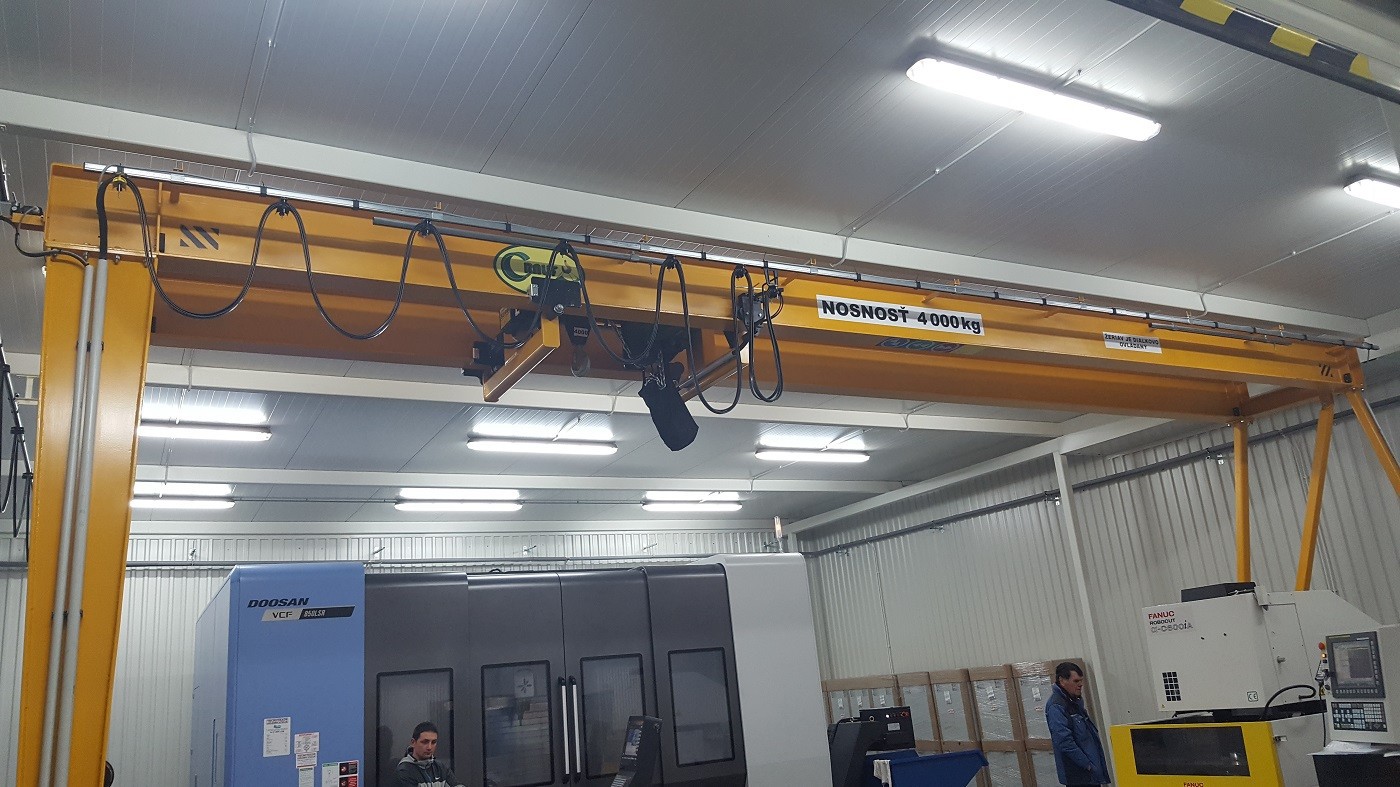

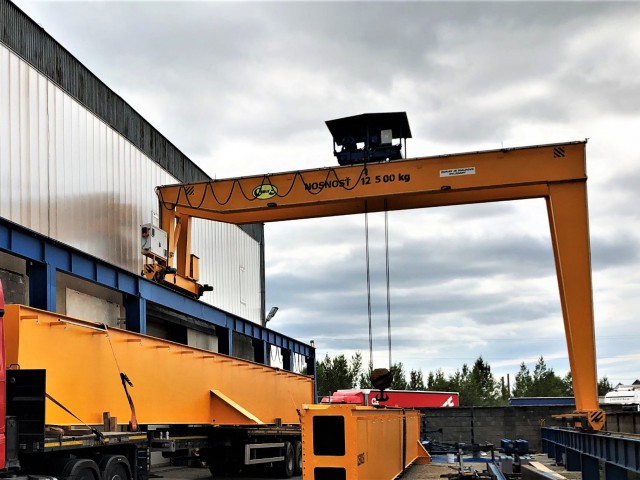

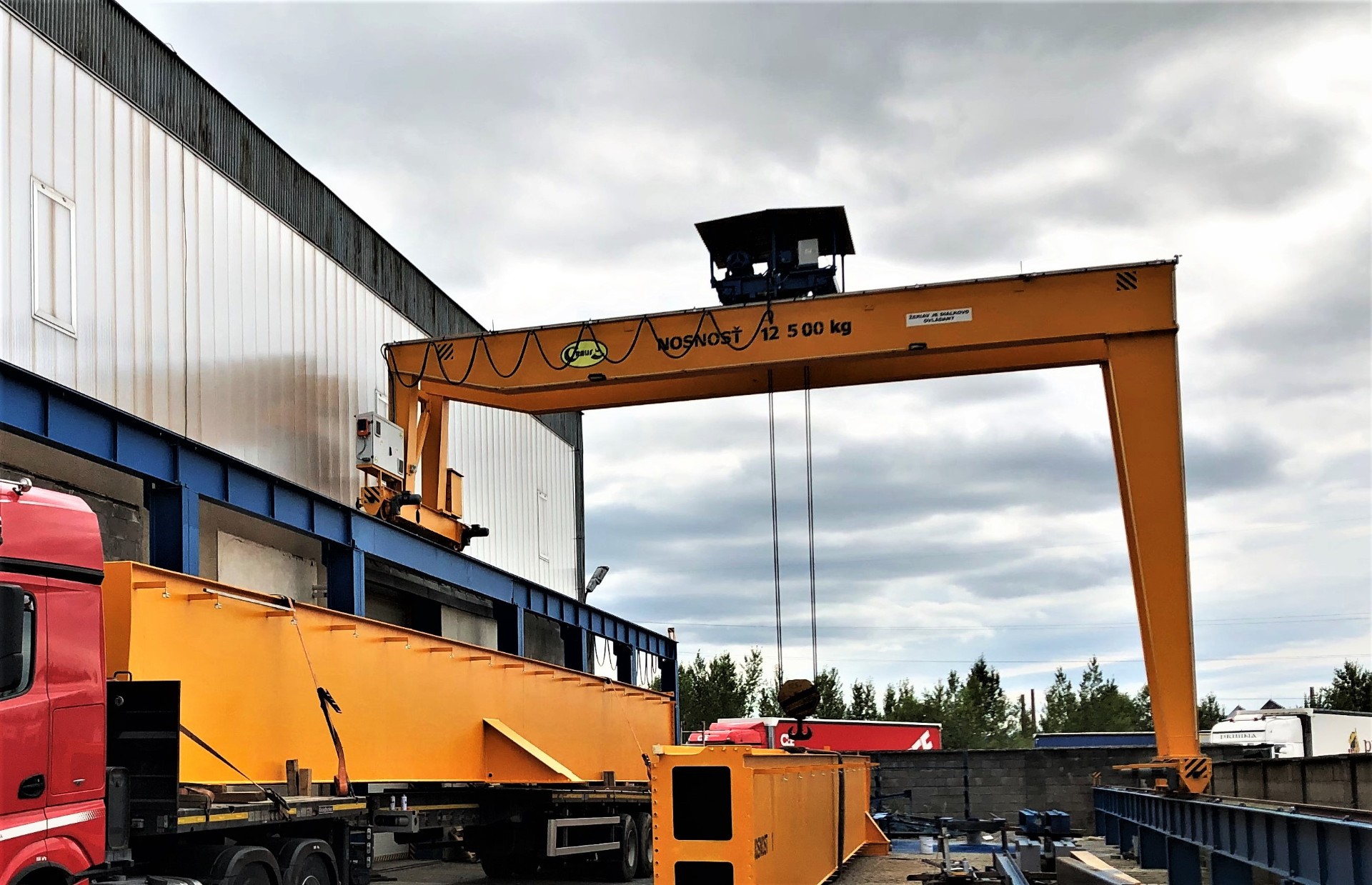

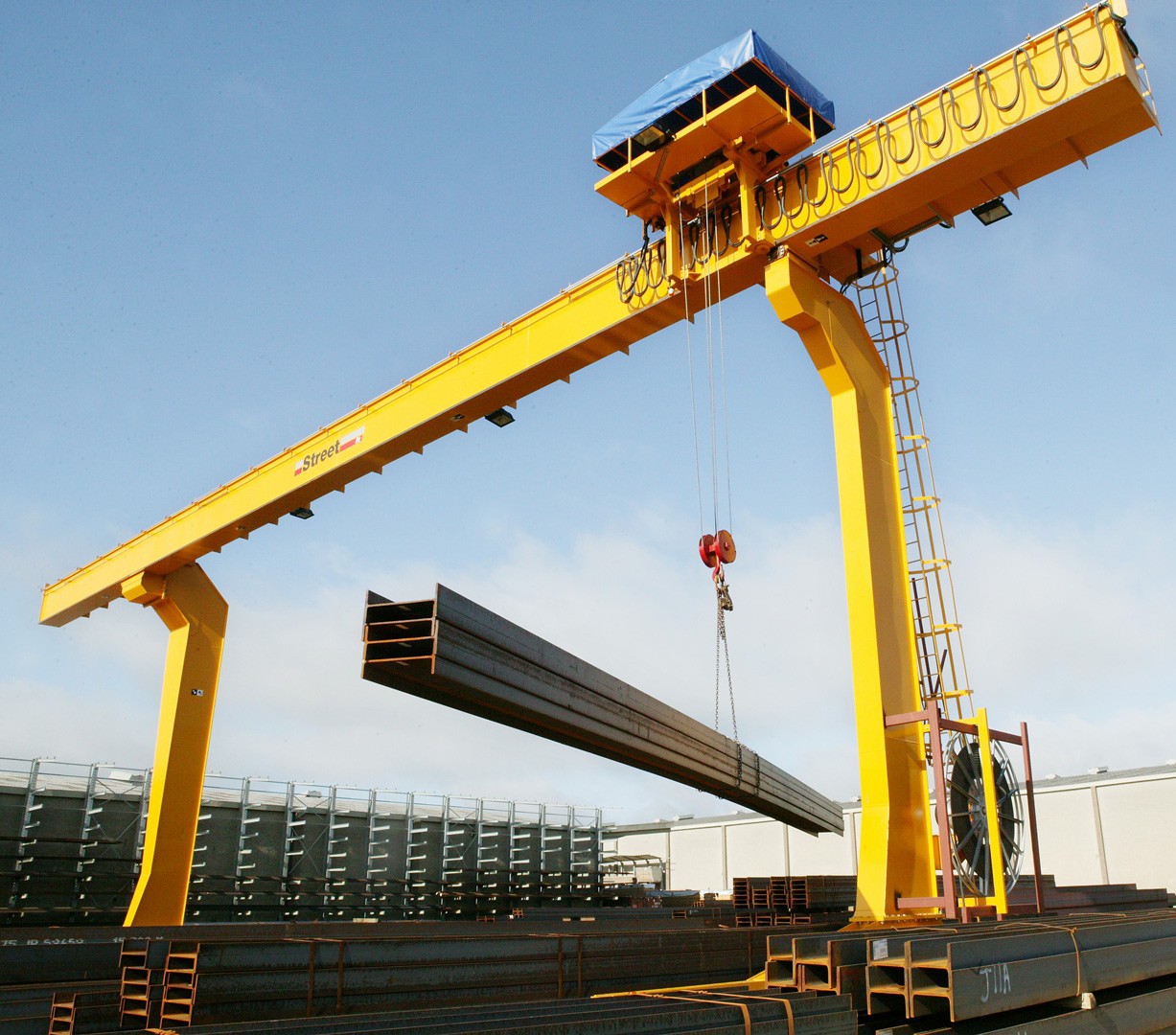

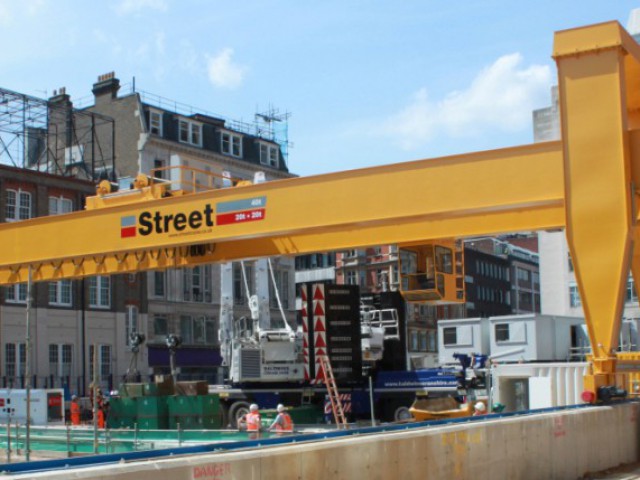

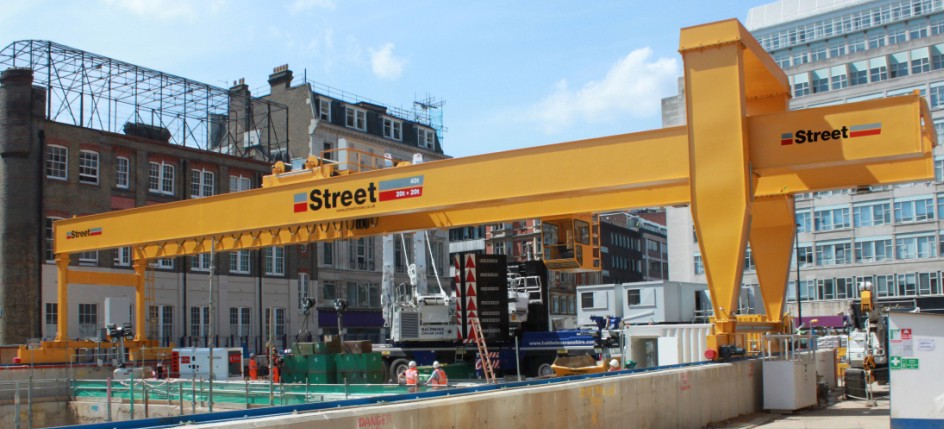

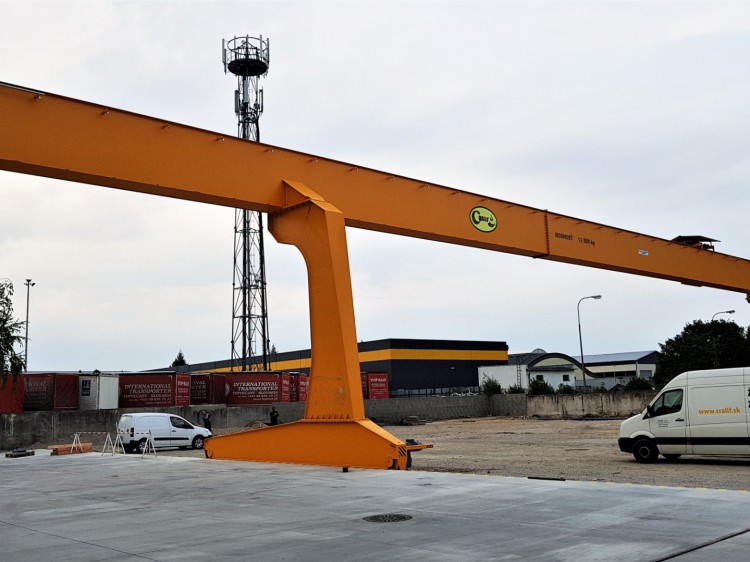

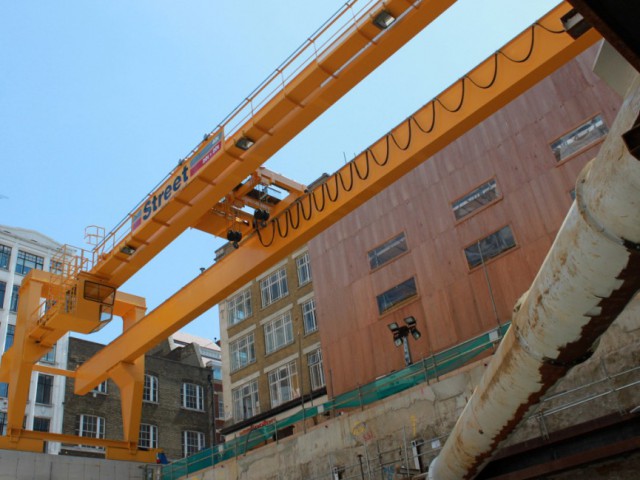

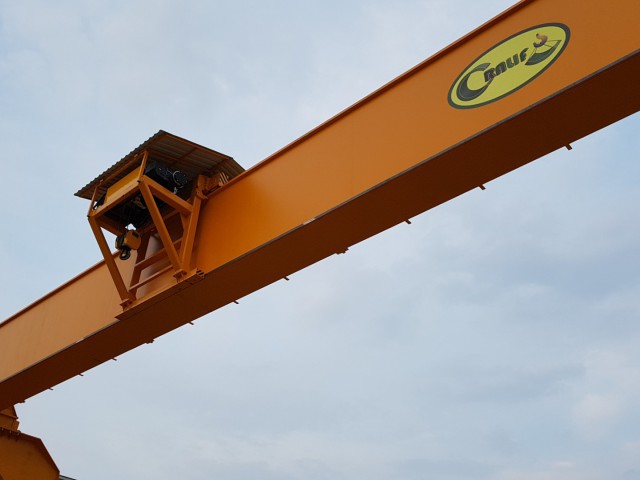

Portal cranes use a trolley drive of portal on two rails situated on the floor, or more precisely on the level of the ground, or they use industrial wheels on concrete ground. Cralif, s.r.o. manufactures single-girder portal "gantry" cranes with capacities up to 25Te SWL (25 000 kg) and double-girder portal "gantry" cranes with capacities up to 80Te SWL (80 000 kg).

We also manufacture special portal cranes which satisfy wide range of client´s projects.









 Technical information

Maximum load bearing capacity up to 25 000 and 80 000 kg
Colour RAL 1007
Span limited by transporting capabilities
Hight of lift up to 15 m
Speed of crane trolley drive normally up to 40 m/min, smooth moving
Speed of hoist trolley drive normally up to 20 m/min, smooth moving
Speed of lift up to 19,2 (m/min)
Lift of hooks two-speed (the main lift and micro lift)
Type of profile tube-shaped profiles with “I” cross section or box welded construction

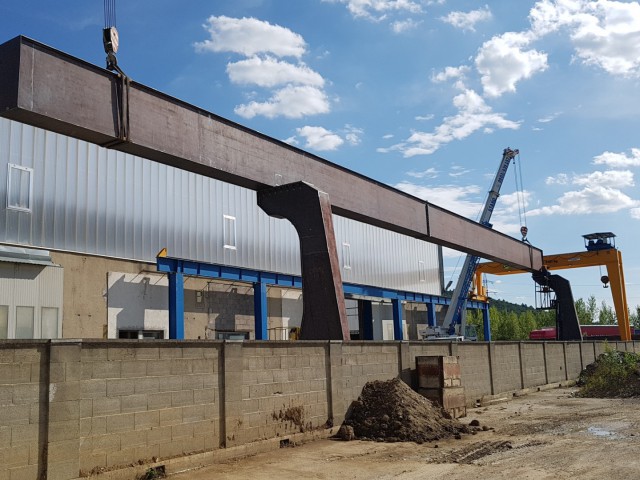

Girders are made of box welded construction or tube-shaped profiles with “I” cross section

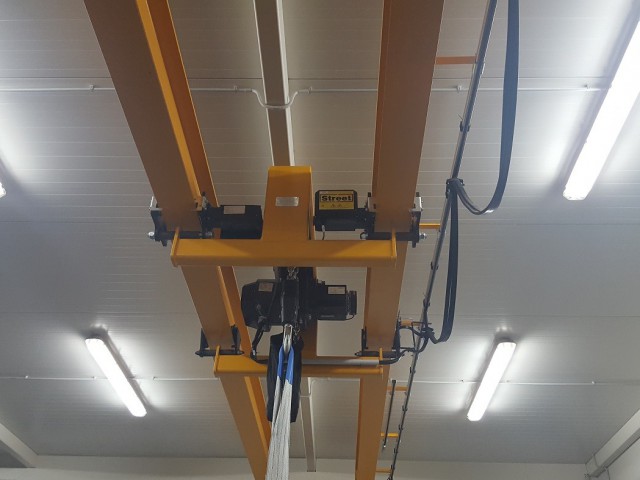

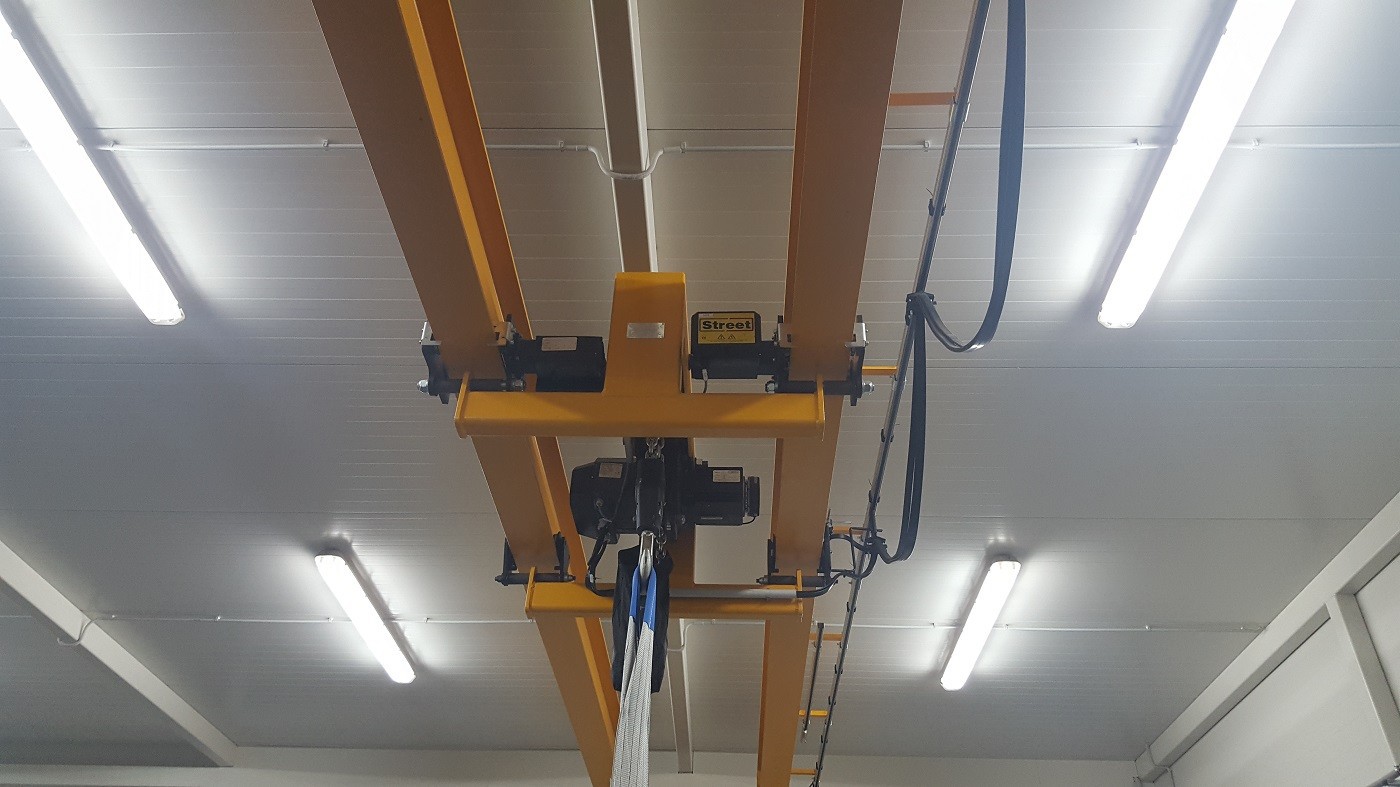

We supply standard chain hoists LIFTKET or rope hoists STREET
Controlling via hanging button-controllers or via radio remote controllers
Power supply of crane via cable trolleys, via closed trolleys covered by plastic or via energy chains
Crane setting outside and inside









 Advantages

  • Each crane is projected to measure according to customer´s requirements to be adapted to a place and shed´s conditions (or to open space) and still work effectively and safely
  • Lay out of crane weight into two end carriages guarantees safe handling with load
  • Long-term operation with minimal costs for maintenance and without any problems
  • Radio remote controller
  • Safety hooks prevent the load from sliding
  • High load bear capacity

















 Accessories and Options

  • Large selection of various kinds of slings made by the Cralif company available from: www.viazacieprostriedky.cralif.sk/en
  • In case of remote control, the crane could be equipped with emergency control via the hanging button-controller which could move along the whole crane independently of crab trolley drive or it could be connected to the main switchboard of the crane via connector

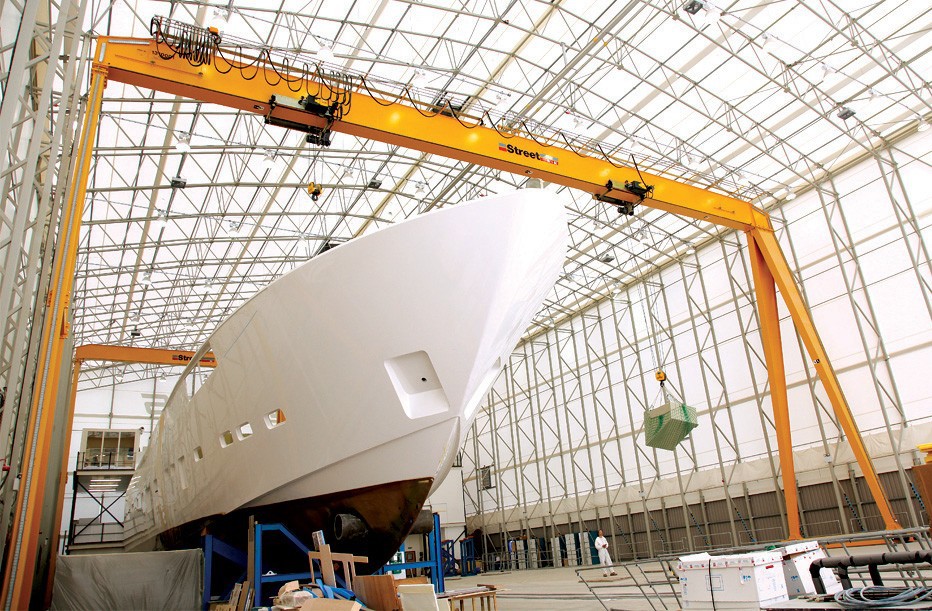

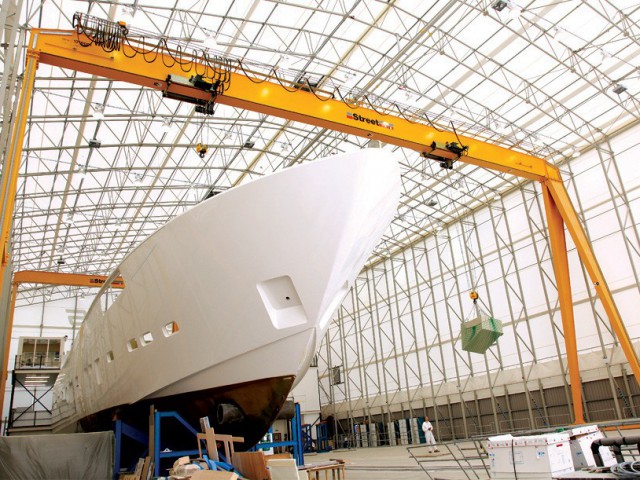

  • Crane is equipped with two hoists working either independently or in tandem (at the same time) using just one controller
  • Automatic control system
  • Anti-collisional systems in case of several cranes being on one railway
  • Colour according to customer´s requirements
  • Modification for use in potentially explosive atmospheres
  • Version with manual drive of all mechanisms
